Basic Specifications
Model NO.
2.5x100.3.6x150.4.8x400.7.2x500.12x900
Material
Nylon 66 (UL Certificated)
Type

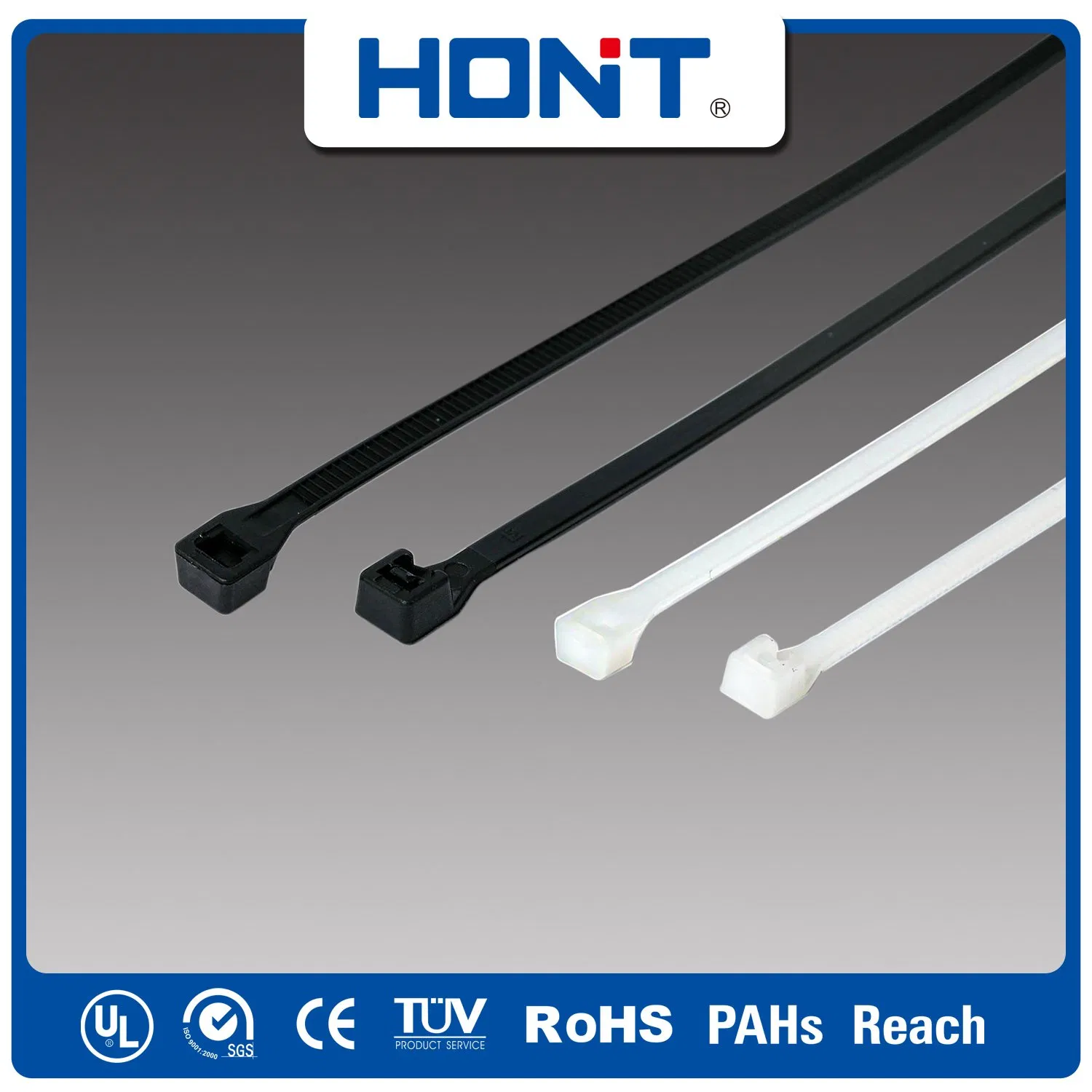

Self-Locking Cable Tie
Temperature
-30~85℃ (Short time 140℃)
Anti UV
Yes (UV Black available)
Product Description & Features
-
🛡️
High Performance Material: Made from Nylon 66 certificated by UL, 94V-2. Heat-resisting, erosion control, and high insulation properties.
-
⚙️
Advanced Design: Self-Locking Tension Enhanced design. National Invention Patent registered in the United States, Japan, and Europe (22 countries).
-
🌡️
Thermal Stability: Operating temperature resistance from -30 centigrade to 80 centigrade; can withstand up to 140 centigrade for short durations.
-
💡

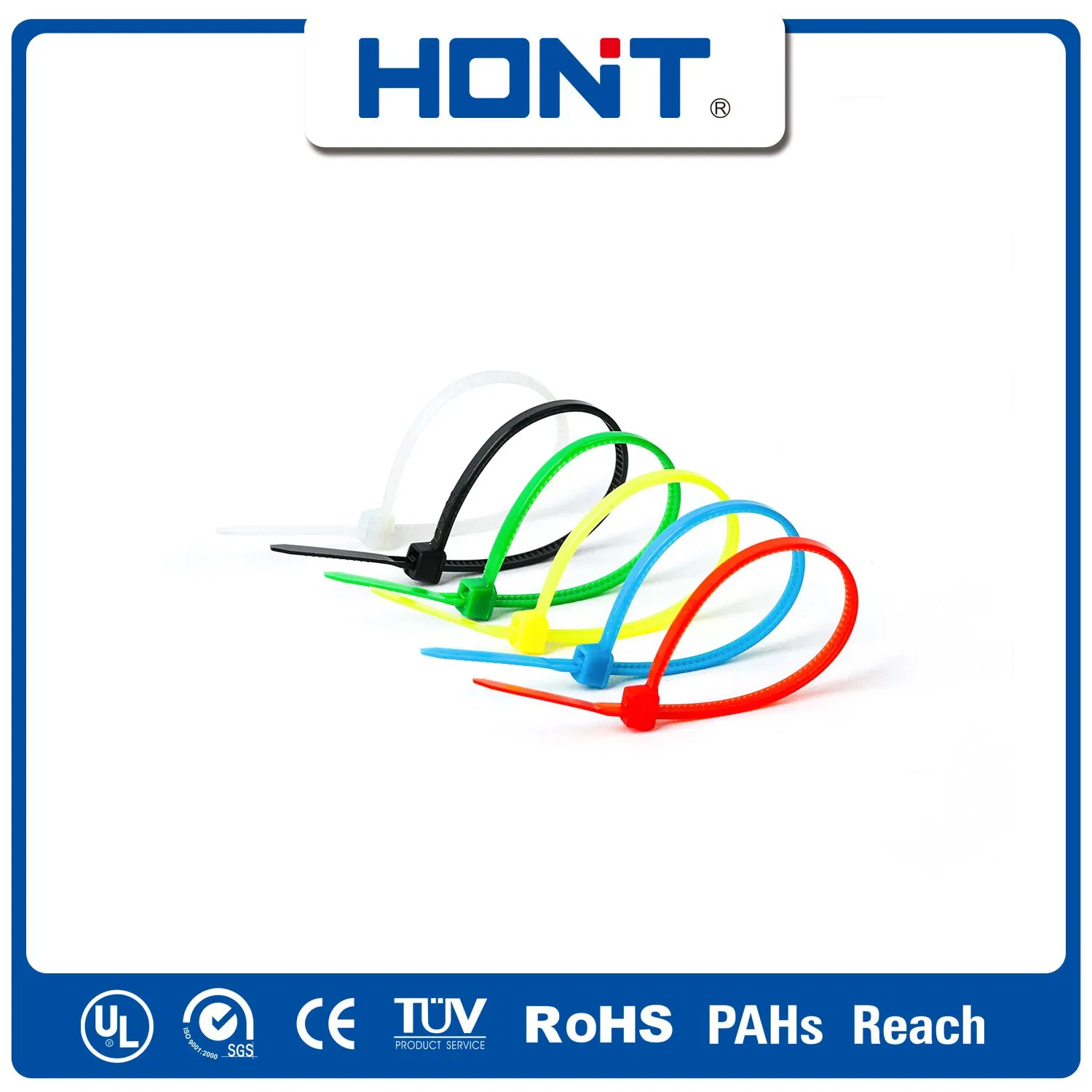

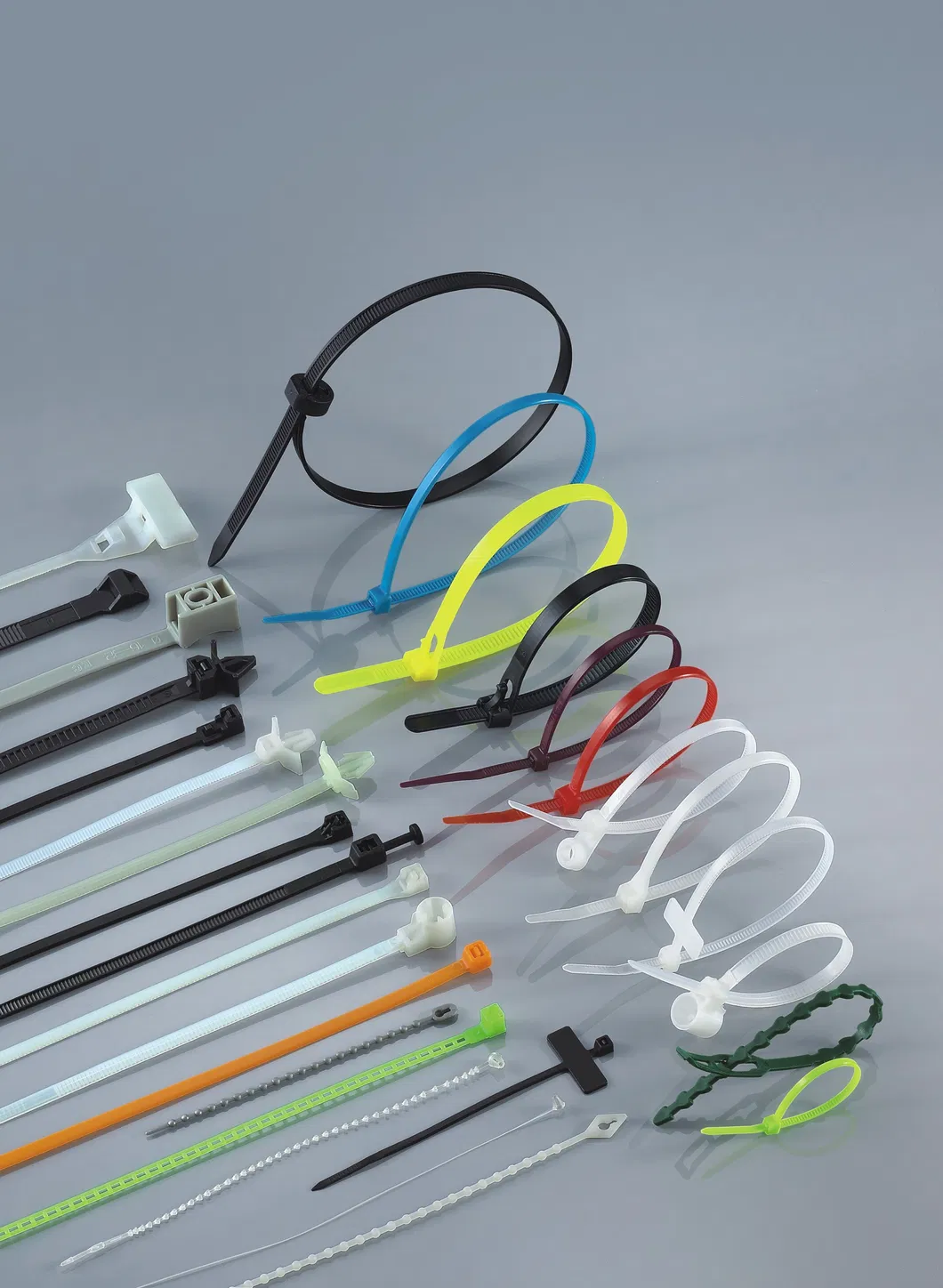

Versatile Applications: Widely used for color coding, identification, bundling aesthetics in electrical, electronics, lighting, hardware, and chemical industries.

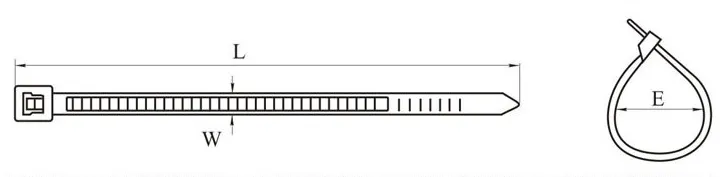

Technical Specifications Data
| Item No. |
Length |
Width (mm) |
Bundle Diameter (mm) |
Tensile Strength |
| Inch |
mm |
LBS |
KGS |
| HTA-2.5X100 | 4.0" | 100 | 2.5 | 2-22 | 24 | 11 |
| HTA-3.6X150 | 6.0" | 150 | 3.4 | 3-35 | 50 | 22 |
| HTA-4.8X200 | 8.0" | 200 | 4.4 | 3-50 | 65 | 29 |
| HTA-4.8X400 | 16" | 400 | 4.4 | 3-105 | 65 | 29 |
| HTA-7.2X500 | 20" | 500 | 7.2 | 4-150 | 150 | 72 |
| HTA-12X900 | 35.5" | 900 | 12 | 14-265 | 325 | 150 |

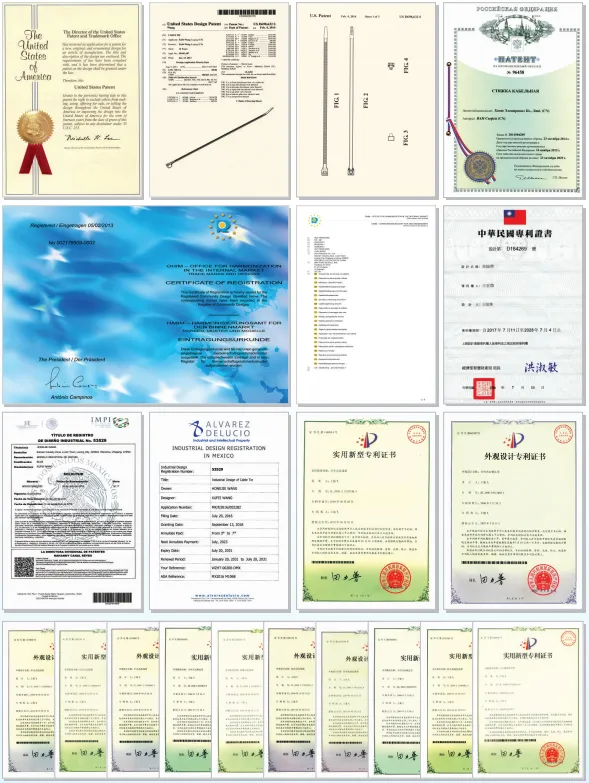

Quality Certifications
Frequently Asked Questions
What is the Minimum Order Quantity (MOQ)?
The standard MOQ is USD 3,000. However, this is negotiable for trial orders.
What is the lead time for sample and first orders?
Sample proofing takes 5-7 days. For the first formal order, it typically takes 25-30 days, or 30-45 days during peak seasons depending on the quantity.
What are your payment terms?
We accept T/T and L/C. Generally, a 30% deposit is required, with the remaining 70% balance settled before B/L.
Can you provide CIF pricing?
Yes, we can provide CIF prices. We will require the detailed quantity and specific sizes to calculate this for you.
What kind of packaging do you offer?
Standard packaging is in carton boxes. We can also accommodate special packaging requests according to your requirements.
Are samples available for testing?
Yes, product samples are available upon request to ensure they meet your application needs.
