| Property | Specification Details |
|---|---|

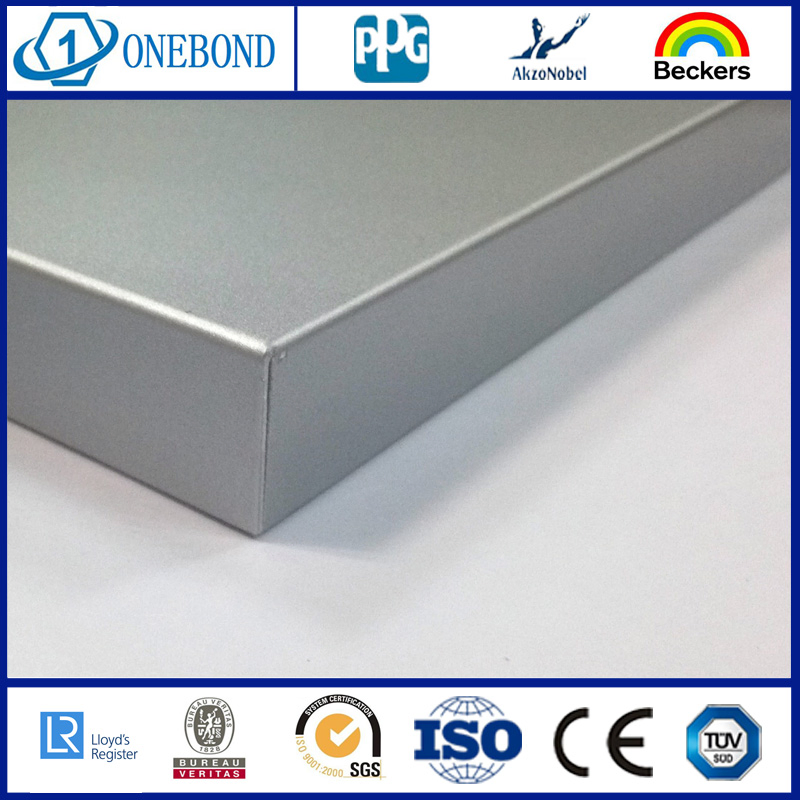

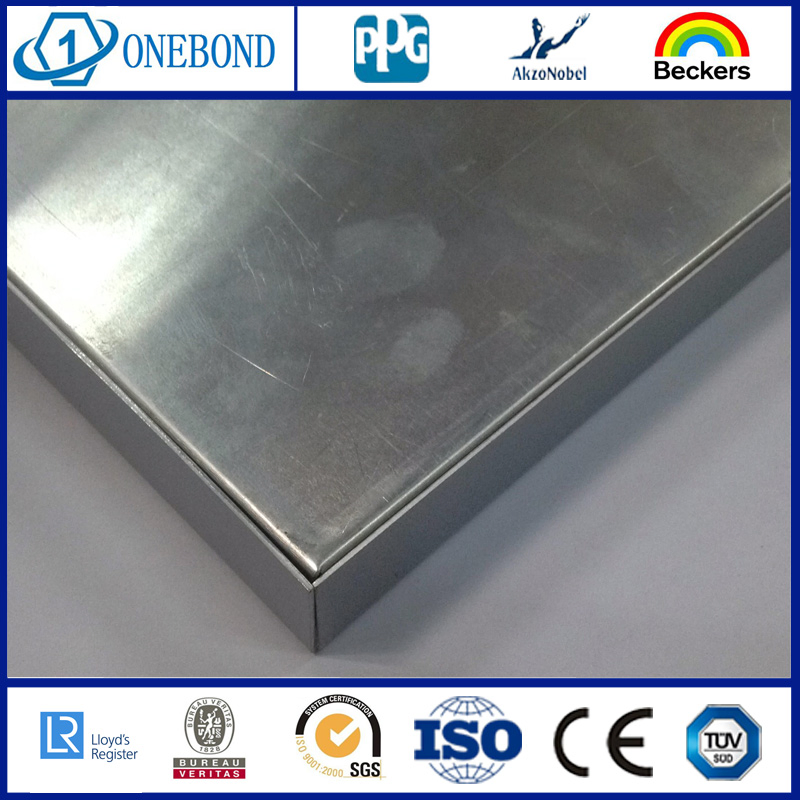

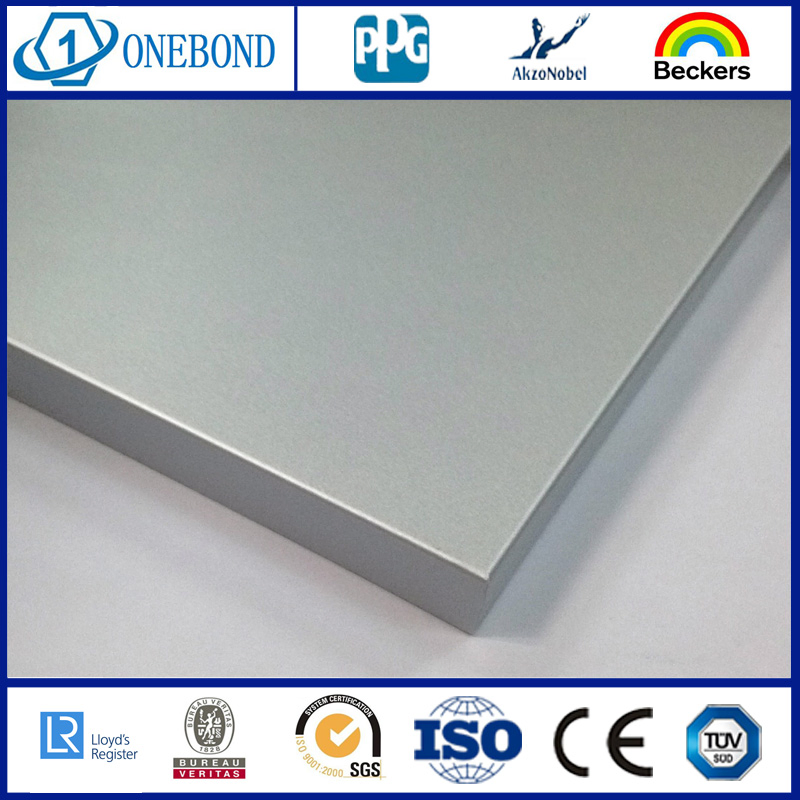

| Product Name | Aluminum Honeycomb Panel |

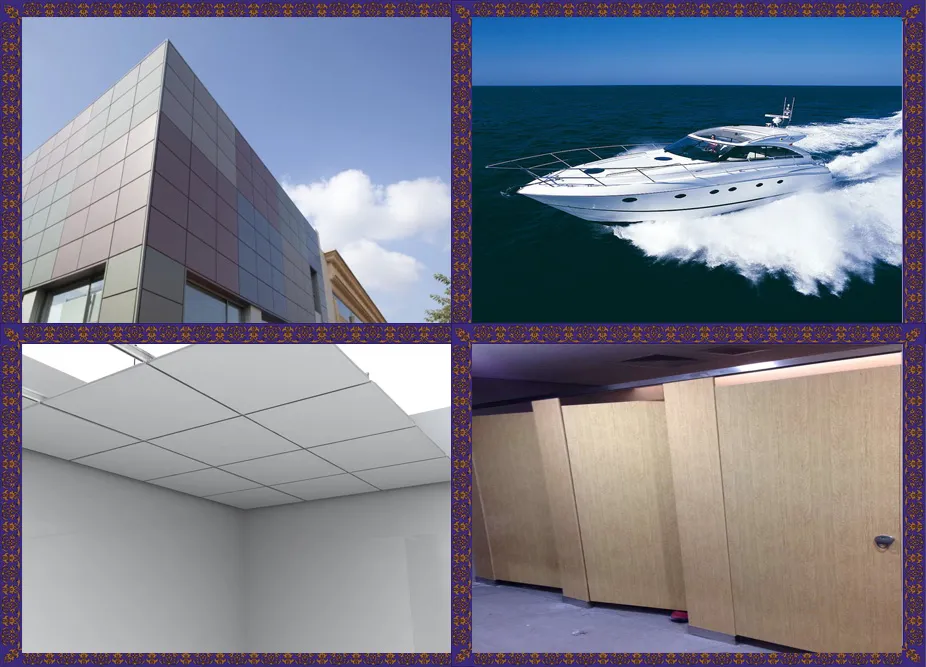

| Application | Curtain wall, ceiling, partition, interior/exterior decoration |
| Certification | Lloyd's Register, ISO9001:2000, BV, SGS |
| Standard Size | 1220*2440mm (Max: 1500*6000mm) |
| Raw Material | Alloy 3003, 5052 |
| Color Type | Solid, Metallic, Wood grain, Marble, Customized |
| Thickness (mm) | 6 mm | 10 mm | 15 mm | 20 mm | 25 mm |
|---|---|---|---|---|---|
| Weight [kg/m²] | 4.7 | 5.0 | 6.7 | 7.0 | 7.3 |
| Rigidity [kNcm²/m] | 7,100 | 21,900 | 75,500 | 138,900 | 221,600 |
| Sound Insulation [dB] | 21 | 21 | 22 | 23 | 25 |
| Thermal Resistance [m²K/W] | 0.0063 | 0.0074 | 0.0084 | 0.0089 | 0.0093 |
Weight is only 1/5 of aluminum panels and 1/10 of iron panels for the same rigidity. Excellent wind-resistance performance.
Enclosed cells block air flow and sound waves (20-30DB reduction). Ideal energy-saving material.
High flatness with PVDF coating ensures long-term weather resistance and color uniformity.
Can be fabricated into various shapes (arc, L-type) in the factory for rapid on-site assembly.
